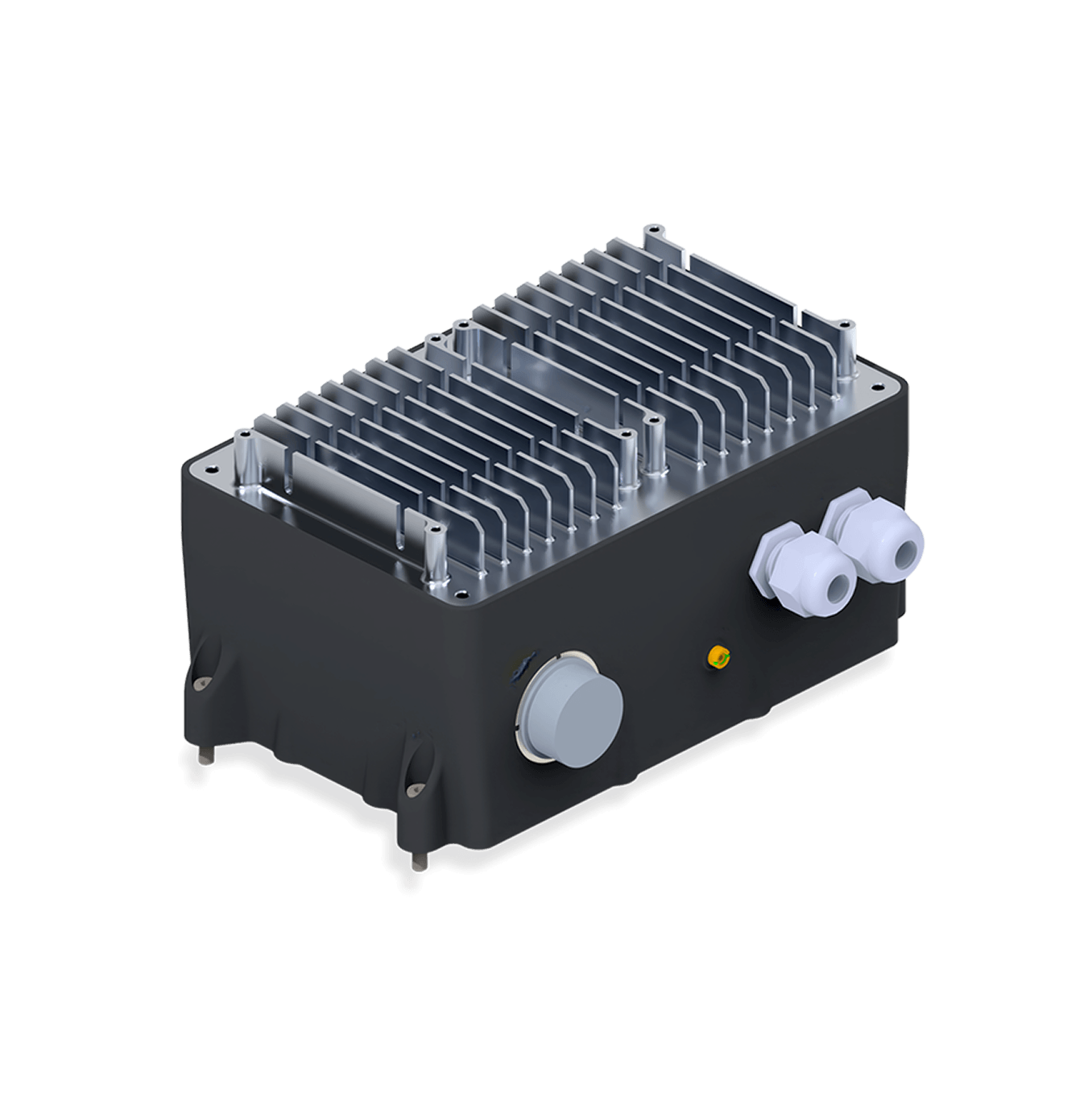

ORBITAL PMS
Advanced Power Management System

Clean Power
Total Control

It keeps your UAV’s critical systems powered.
Cleanly, continuously, and intelligently
‍Orbital’s PMS conditions and prioritises power, automatically switches between alternator / battery / shore, protects the avionics bus, and reports health via telemetry, so missions continue even when supply or load changes.
PMS brochurestart with sales

Keep critical systems online

Two independent 28 V outputs for flight/mission-critical loads plus a regulated 14 V for ECU / ignition / fans; >90% efficiency, <10 W idle.

Seamless source switching

Alternator, 7S LiPo, or shore power with automatic handover under load and power sharing at low RPM. Keeps reserves topped up.

See and solve issues fast

CANbus real-time telemetry; with FlexECU® Argon, get improved fuelling algorithms under electrical load, fault/diagnostics monitoring, and black-box logging.

Built for the airframe

IP55-targeted sealed unit with IP68 fans for in-fuselage mounting; –10 to +50 °C ambient, 2200–7500 RPM alternator range, up to 30 A rectified input. Remote start from Orbital’s FlexDT™

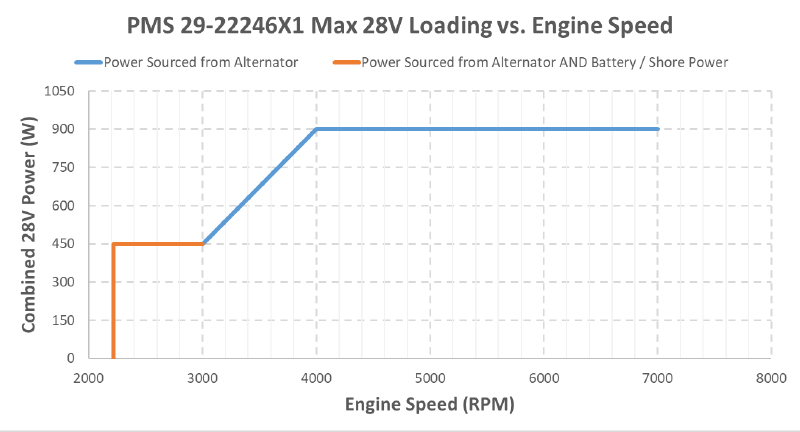

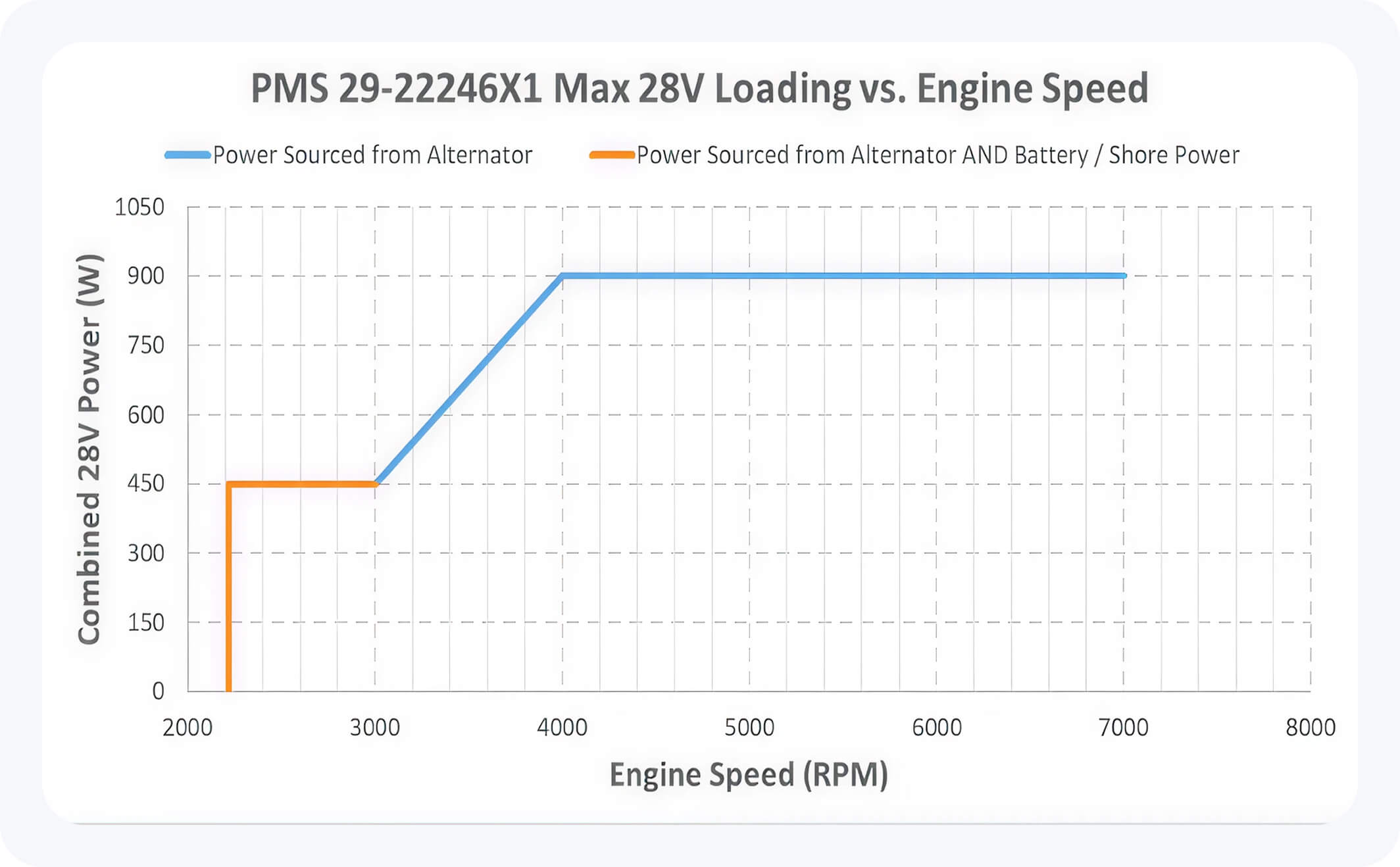

Plan payload power with confidence:

PMS bridges the gaps so critical systems stay online.

Orbital’s PMS uses two independent 28 V outputs (flight/mission) letting you prioritise critical systems while keeping the payload powered.

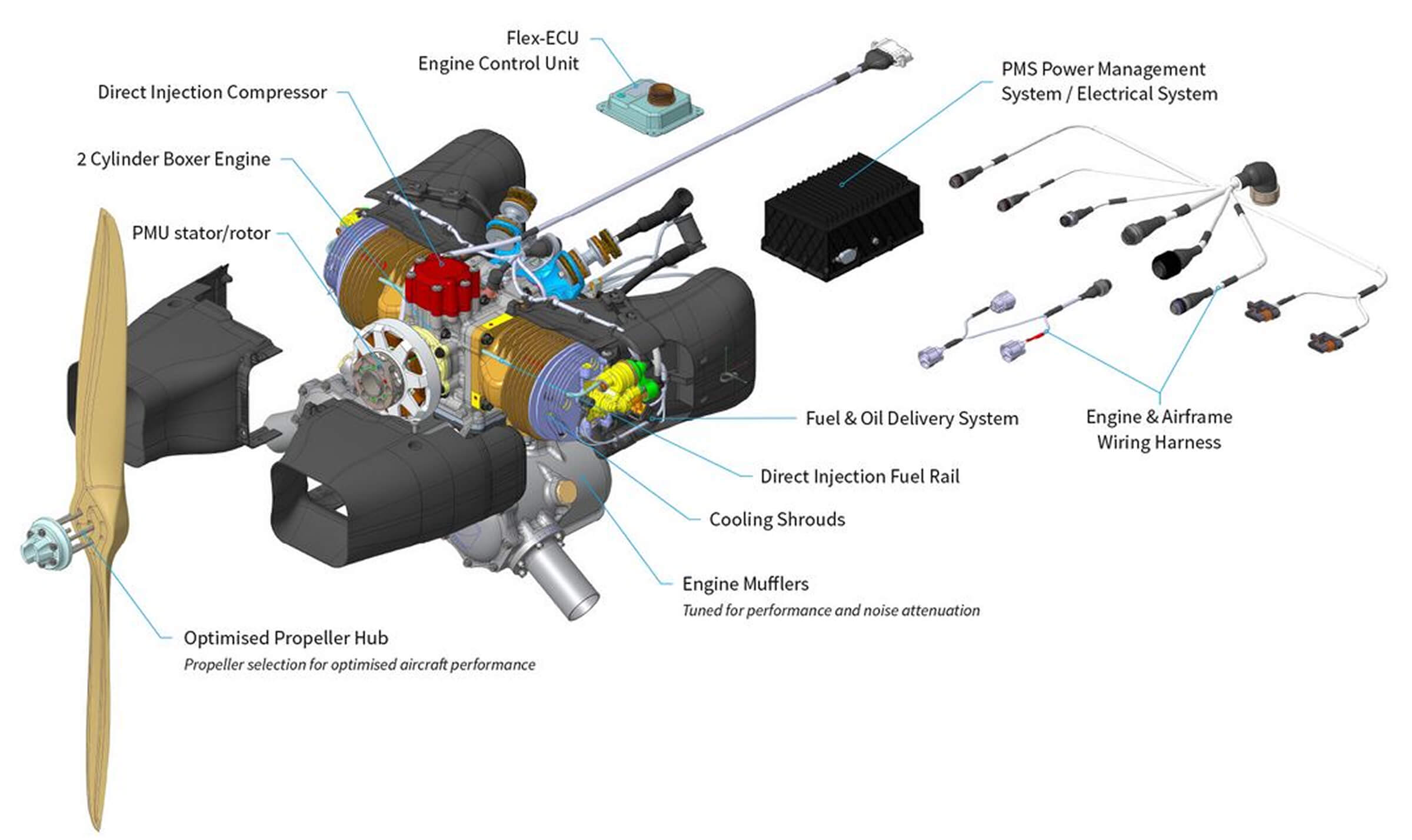

Orbital’s Integrated Propulsion Systems

From 50–350cc FlexDI™ heavy-fuel engines and PMS, Orbital delivers proven reliability, efficient combustion, and straightforward integration - backed by decades of mission experience.

PMS Specifications:

Physical Specifications
Environmental Specifications
Electrical Specifications
Length
mm
220
Width
mm
120
Excludes connector caps.
Height
mm
115
90mm without fans.
Weight (with fans)
g
1710±50
Excludes connector cap and mounting hardware.
Weight (without fans
g
1410±50
Excludes connector cap and mounting hardware.
Ambient operating temperature
°C
-10 to +50
Thermal derating applies at higher ambient temperatures.
Storage temperature range
°C
-10 to +60
Max. internal temperature
°C
+110
Customer shall monitor reported PMS temperatures.
Ingress protection
-
IP55
Not verified. Assumes suitably sealed mating connectors.Supplied fans rated to IP68.
Typical efficiency
%
>90
Operating from Alternator, 500W @ 28V, 100W @ 14V, battery charging.
Idle power consumption
W
<10W
Operating from Shore Power, with no output loads.
Alternator Input
Rated engine speed range
RPM
2200-7500
Not verified. Assumes suitably sealed mating connectors.Supplied fans rated to IP68.
Min. rectified voltage
V (DC)
32
Below this, the backup battery / shore power inputs may be required dependent on 28V loading.
Max. rectified voltage
V (DC)
120
Max. rectified alternator current
A (DC)
30
Voltage sense accuracy
%
±5
Current sense accuracy
%
±3
Battery Input
Supported battery configuration
7S LiPo
Other battery configurations / chemistries must not be used.
Rated input voltage range
V (DC)
21-30
Outside this range, operation from battery will not be permitted.
Min. starting voltage
V (DC)
28
Below this, remote starting attempts will be prevented.
Max. input current
A (DC)
25
Current during a remote start attempt will be much higher.
Voltage sense accuracy
%
±3
Current sense accuracy
%
±3
Battery Input
Rated input voltage range
V (DC)
20-32
As measured at PMS.
Max. input current
A (DC)
25
Voltage sense accuracy
%
±3
Current sense accuracy
%
±3
Shore Power Input
Rated input voltage range
V (DC)
20-32
As measured at PMS.
Max. input current
A (DC)
25
Voltage sense accuracy
%
±3
Current sense accuracy
%
±3
14V Output (ECU and Ignition)
Regulation setpoint
V (DC)
14 ±0.2
Max. output current
A (DC)
12.5
Combined ECU & Ignition outputs, also includes fans fitted to PMS.
Voltage sense accuracy
%
±3
Current sense accuracy
%
±3
2x 28V Outputs (28V Flight Critical and 28V Mission Critical)
Regulation setpoint
V (DC)
28 ±0.5
Max. output current
A (DC)
16
Per independent bus.
Voltage sense accuracy
%
±3
Current sense accuracy
%
±3
Battery Charger Output
%
V (DC)
29 ±0.2
In Constant Voltage (CV) mode.
%
A (DC)
2.85
Nominal charging current in Constant Current (CC) mode.
%
%
±3
%
%
±3
